Rangkaian Lampu LED Sepeda Motor 2x20

The 555 circuit below is a flashing bicycle light powered with four C,D or AA cells (6 volts). Two sets of 20 LEDs will alternately flash at approxima

Rangkaian Lampu LED Sepeda Motor 2x20 - Salam Electrical Engineer yang setia membaca artikel pada blog ini. Semoga tetap bersemangat untuk belajar dan terus belajar tentang elektronika. Pada kesempatan kali ini saya akan berbagi tentang

Rangkaian Lampu LED Sepeda Motor 2x20. Gunakan fitur Translate di sebelah kanan untuk menterjemahkan teks berbahasa inggris, selamat membaca, semoga bermanfaat.

Rangkaian Lampu LED Sepeda Motor ini sangat sederhana yang hanya menggunakan beberapa komponen saja tapi hasilnya sangat memuaskan. Konsumsi dayanya sangat kecil cukup 6 Volt saja sangat cocok untuk sepeda motor anda.

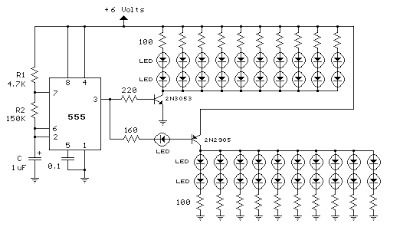

The 555 circuit below is a flashing bicycle light powered with four C,D or AA cells (6 volts). Two sets of 20 LEDs will alternately flash at approximately 4.7 cycles per second using RC values shown (4.7K for R1, 150K for R2 and a 1uF capacitor).

Time intervals for the two lamps are about 107 milliseconds (T1, upper LEDs) and 104 milliseconds (T2 lower LEDs). Two transistors are used to provide additional current beyond the 200 mA limit of the 555 timer.

A single LED is placed in series with the base of the PNP transistor so that the lower 20 LEDs turn off when the 555 output goes high during the T1 time interval. The high output level of the 555 timer is 1.7 volts less than the supply voltage.

Adding the LED increases the forward voltage required for the PNP transistor to about 2.7 volts so that the 1.7 volt difference from supply to the output is insufficient to turn on the transistor. Each LED is supplied with about 20mA of current for a total of 220mA.

The circuit should work with additional LEDs up to about 40 for each group, or 81 total. The circuit will also work with fewer LEDs so it could be assembled and tested with just 5 LEDs (two groups of two plus one) before adding the others.
