DC-to-DC Boost Converter using Micromachine Circuit Schematic

DC-to-DC Boost Converter using Micromachine Circuit Schematic - The following picture is the Schematic of a DC-to-DC Boost Converter using a micromac

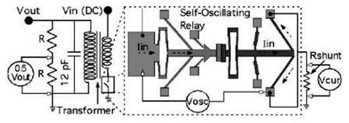

DC-to-DC Boost Converter using Micromachine Circuit Schematic - The following picture is the Schematic of a DC-to-DC Boost Converter using a micromachined self-oscillating switch for Powering High-Voltage Transducers.

The circuit provide miniaturized voltage conversion for microsensors and microactuators with high-voltage requirements and is intended to provide 300–800V AC or DC output voltage with up to 1W of power, while being powered by a 3–10V DC supply.

You may see detailed description about DC-to-DC Boost Converter using Micromachine Circuit Schematic in the article which was written by Kabir Udeshi and Yogesh B. Gianchandani.
