UC3845 Sync Pulse Generator Circuit Diagram

UC3845 Sync Pulse Generator Circuit Diagram - The series of UC 3842, 3843, 3844 and 3845 Oscillators can be used to generate sync pulses which no need

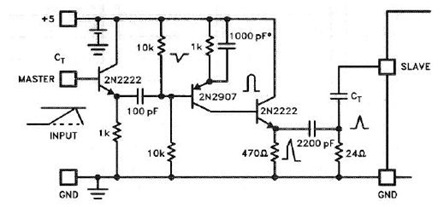

UC3845 Sync Pulse Generator Circuit Diagram - The series of UC 3842, 3843, 3844 and 3845 Oscillators can be used to generate sync pulses which no need to have a lot of external components. As seen in the following circuit, it shows Sync Pulse Generator Circuit Diagram of the UC3842/3/4/5.

This sync pulse circuitry is useable to several hundred kilohertz with a minimum of delays between master and slaves, according to the application note datasheet.

You might also want to see: 2N2222, 3844 datasheet.
